Doctor Rock

Doctor Rock device

What It Is

Doctor Rock is an open-source audiovisual effects processor and guitar pedal dev kit. It runs on a Raspberry Pi with real-time audio processing through SuperCollider and ShaderToy-style GLSL visualizations—all controllable via voice, phone, or hardware faders.

Unlike traditional guitar pedals that offer a fixed set of knobs and effects, Doctor Rock treats effects as code: text files you can fork, remix, and share. With 100+ effects to start and LLM-powered creation tools, you’re not limited to what ships in the box.

Key capabilities:

Real-time audio effects processing with ~2.1ms latency
Synchronized audio-reactive visualizations
Natural language effect creation and editing via AI
Phone-based remote control with QR code pairing
Hardware fader integration (Roto Control Mini)
Git-based effect library with community sharing

Demo Video

Core Features

Phone Control with QR Code Pairing

When you’re playing guitar, the last thing you want is to bend over and tap a touchscreen. Doctor Rock generates a QR code that beams the control interface to your phone. Once paired, your phone becomes a wireless effects controller—browse effects, adjust parameters, and shuffle presets while you play.

The mobile interface stays synchronized with the device: what you see on your phone matches what’s happening on the pedal, and vice versa.

Roto Control Mini Integration

Doctor Rock connects to the Roto Control Mini, a physical motorized knob. When you move a fader on your phone, the physical Roto knob rotates to match—and the on-device UI updates as well. All three interfaces (phone, touchscreen, hardware) stay in sync.

This bidirectional binding means you can reach over and grab the physical knob mid-performance, or tap your phone, or use the touchscreen. The effect parameters follow wherever you control them from. In shuffle mode, when new effects load, the faders animate to their new positions across all connected interfaces.

100+ Effects Library

The doctor-rock-effects repository contains over 100 effects ready to use out of the box:

Audio effects: distortion, autowah, delay, reverb, harmonizers, pitch shifters, ring modulators, loopers, granular processors
Visualizers: audio-reactive shaders adapted from ShaderToy, waveform displays, FFT spectrograms, procedural animations
Utilities: bypass, tuner, input level monitoring

Each effect is a SuperCollider .sc file (audio) or GLSL .glsl file (visual). Since they’re just text, you can read the code, tweak parameters, or use them as starting points for your own creations.

Example directory structure:

effects/
├── audio/
│   ├── autowah.sc
│   ├── bypass.sc
│   ├── baxandall_distortion.sc
│   ├── mbv_reverse_reverb.sc
│   └── ...
├── shaders/
│   ├── ascii.glsl
│   ├── spectral.glsl
│   ├── flames.glsl
│   └── ...
├── utilities/
│   ├── init.sc
└── agents.md

Natural Language Effect Creation

LLMs are surprisingly good at writing SuperCollider code. Doctor Rock integrates Claude as an AI copilot for creating and modifying effects through conversation:

Voice commands: Speak into the device’s built-in mic to request changes
MCP server integration: The Doctor Rock MCP server exposes tools for effect compilation, parameter adjustment, and Git operations
Iterative feedback: The agent can check if code compiles, read error messages, and fix issues automatically

The voice-mcp-server project extends this further—you can control Doctor Rock from the Claude iOS app, creating effects via voice commands from your phone while the device runs on your local network.

Example: The mbv_reverse_reverb effect—a My Bloody Valentine-style reverse reverb—was created entirely through voice commands, from initial request to GitHub push.

Hardware

Current Build

Compute: Raspberry Pi 4B (4GB or 8GB recommended)
Audio interface: Pisound HAT – balanced stereo I/O, solid preamp, ~2.1ms loopback latency
OS: Patchbox OS – real-time Linux kernel optimized for audio
Display: 7” touchscreen (the UI is optimized for this specific resolution)
Mic: Built-in microphone for voice commands
I/O: 1/4” guitar input, 1/4” stereo output, USB ports, MIDI support

The hardware stack accepts line-level instruments (guitars, synths), handles microphones cleanly, and supports external footswitches if you want to add them.

Enclosure

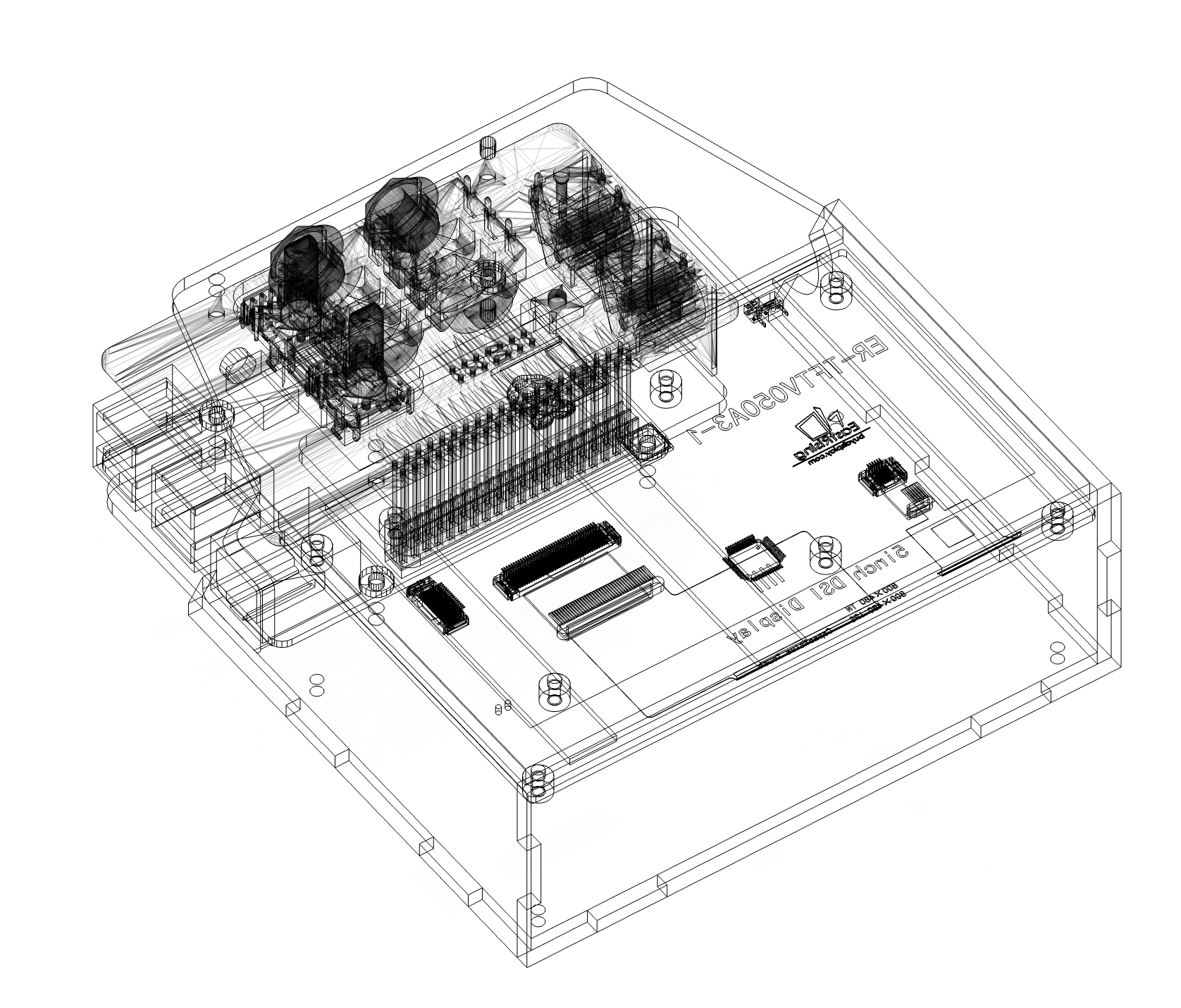

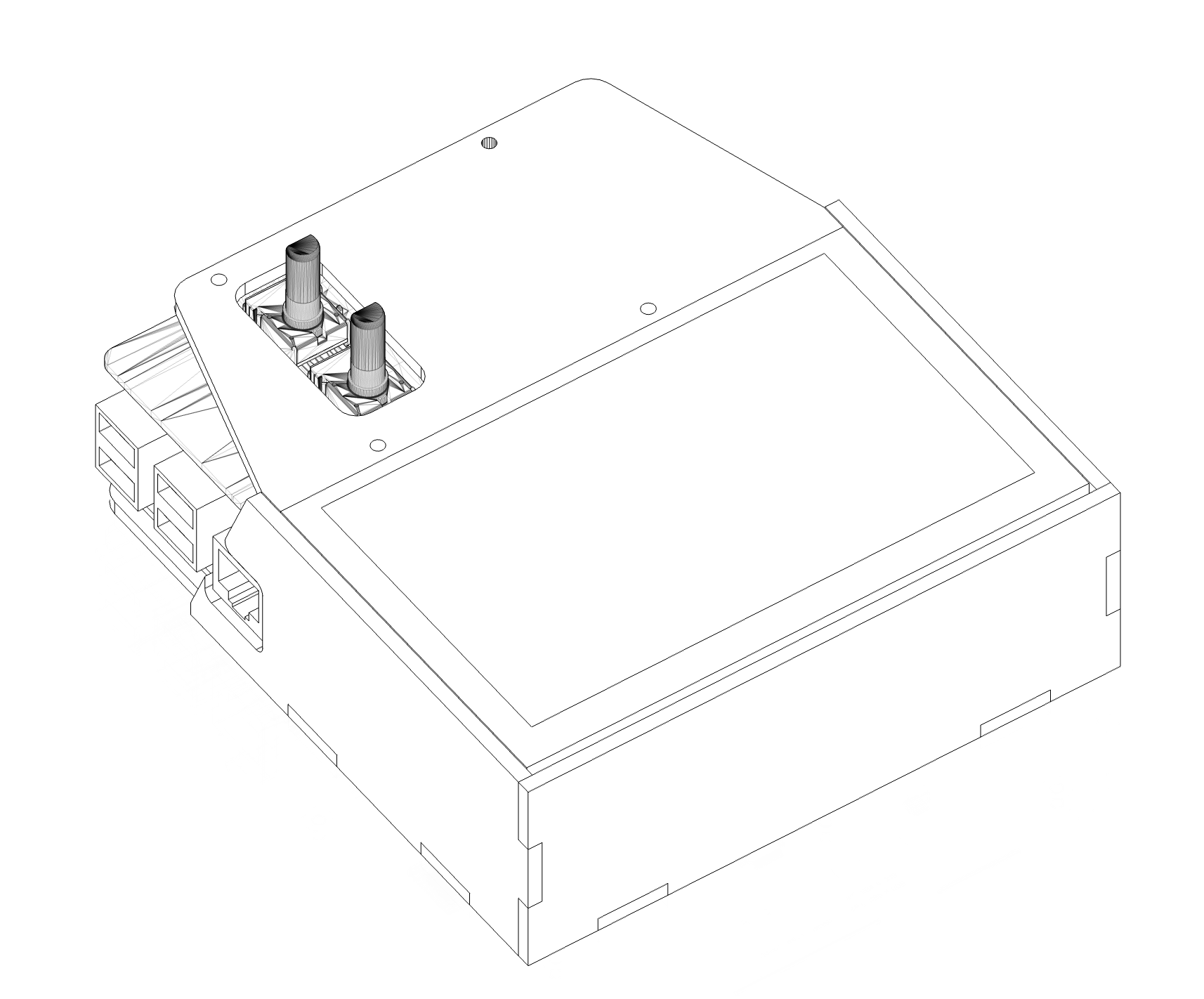

Designed in Fusion 360 and laser cut on a Glowforge. Went through ~20 iterations to balance component access (USB ports, SD card slot) with a clean look. The design is parametric and can be adapted for different component layouts.

Software Architecture

Stack

Audio engine: SuperCollider – handles all DSP, streams waveform data to visualizer via OSC
Application layer: Electron – cross-platform, enables macOS development with ARM builds for Pi
Frontend: React – responsive UI for effect browsing, parameter control, and settings
Communication: OSC for audio data, MCP for agent control, WebSocket for phone pairing

Visualization Pipeline

Visuals are tightly coupled to audio. SuperCollider streams real-time frequency and amplitude data over OSC. ShaderToy-compatible GLSL shaders consume this data, creating audio-reactive visuals.

The visualizer can broadcast over the local network, so multiple high-resolution displays stay in sync with minimal overhead. Useful for projecting visuals while keeping the main unit at your feet.

MCP Server

The device runs an MCP (Model Context Protocol) server that exposes its capabilities to AI agents:

Create, edit, and delete effects
Adjust parameters and save presets
Capture logs and compilation output
Run Git commands (commit, push, pull, branch)
Control playback and visualization

This makes natural language the interface layer—the agent translates conversational requests into tool calls that manipulate the system.

Updates and Offline Mode

On startup, the app checks GitHub releases and pulls updates when available. But connectivity isn’t required: the device works fully offline, minus cloud features like AI creation and effect sync. Important for gigging musicians who can’t rely on venue Wi-Fi.

Why It Exists

Guitar pedals haven’t fundamentally changed in decades. They’re hardware-defined: you get the effects the manufacturer built in, with the knobs they chose, at the price they set. Want a different effect? Buy another pedal.

Doctor Rock asks: what if effects were software? What if your pedal had a screen? What if you could describe the sound you want and have AI write the code?

The original inspiration was simple: a guitar pedal with a display. But that idea evolved into something more experimental—a dev kit for exploring what audiovisual effect processing could become when you treat code as the medium and AI as a collaborator.

It’s not a finished product. It’s a sandbox.

Weaknesses and Future Work

Current Limitations

Boot time is slow. Raspberry Pi isn’t known for fast starts. The current setup takes 30-45 seconds to reach the app from power-on. For a gigging musician, this is inconvenient. Future work: investigate boot optimization, consider a more responsive “loading” state, or explore alternative SBCs.

UI is designed for a specific display. The touchscreen UI targets the 7” Raspberry Pi display at 800x480. While the app runs on macOS, the interface feels cramped or awkward on different resolutions. A more responsive design would help, but it hasn’t been a priority given the focused use case.

LLM latency breaks creative flow. The vision is that creating effects should feel like patching cables—immediate, tactile, iterative. In practice, LLM response times (5-15 seconds per turn) disrupt that flow state. You describe what you want, wait, see the result, describe a tweak, wait again. It works, but it doesn’t feel like improvisation yet. As inference speeds improve, this will get better. For now, it’s more “compose and wait” than “jam.”

Setup requires configuration. Git push support needs SSH key setup. AI features require API billing configuration. Wi-Fi provisioning exists but remains clumsy. The project isn’t yet turnkey.

The code is rough. This is “code as a means to an end”—functional but not pretty. It’s been a learning project for AI-assisted development, with rapid iteration prioritized over polish. The architecture is sound, but the implementation has debt.

Future Directions

Faster local inference: Running smaller models on-device could reduce latency for simple edits
Effect templates: Starting from known-good patterns rather than blank SuperCollider files
Footswitch support: Physical momentary switches for live performance
Community effect sharing: A proper index/discovery mechanism for the effects repo
Boot optimization: Faster startup for practical gigging use
Responsive UI: Better support for different screen sizes

Origin Story

The project started as a playful hardware experiment with friends, took several twists and turns, and then paused. I couldn’t let it go. Over several years, I’ve steadily iterated on hardware and software approaches.

Although it was conceived as a guitar pedal, it evolved into more of a dev kit and audiovisual processor. One observation along the way: guitar pedals would be far more capable with a high-quality built-in display. But it’s not quite fair to call this a guitar pedal either—I never stuck a footswitch on it.

Contributors and Attributions

Shoutout to Patrick Hackett and Brian Min for co-creating the initial prototype. Maybe we’ll regroup on a bigger production push someday.

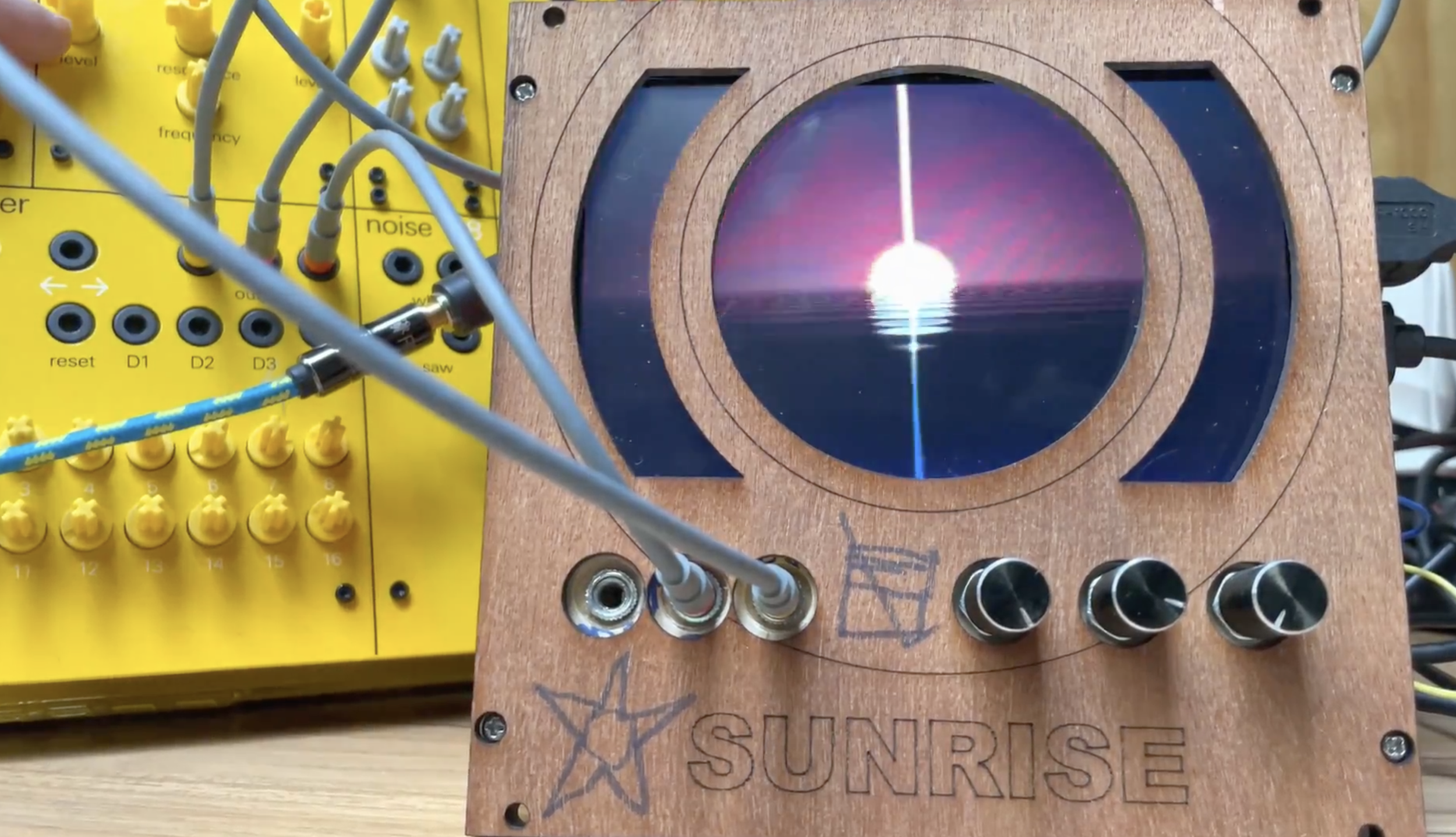

Initial prototype from 2022

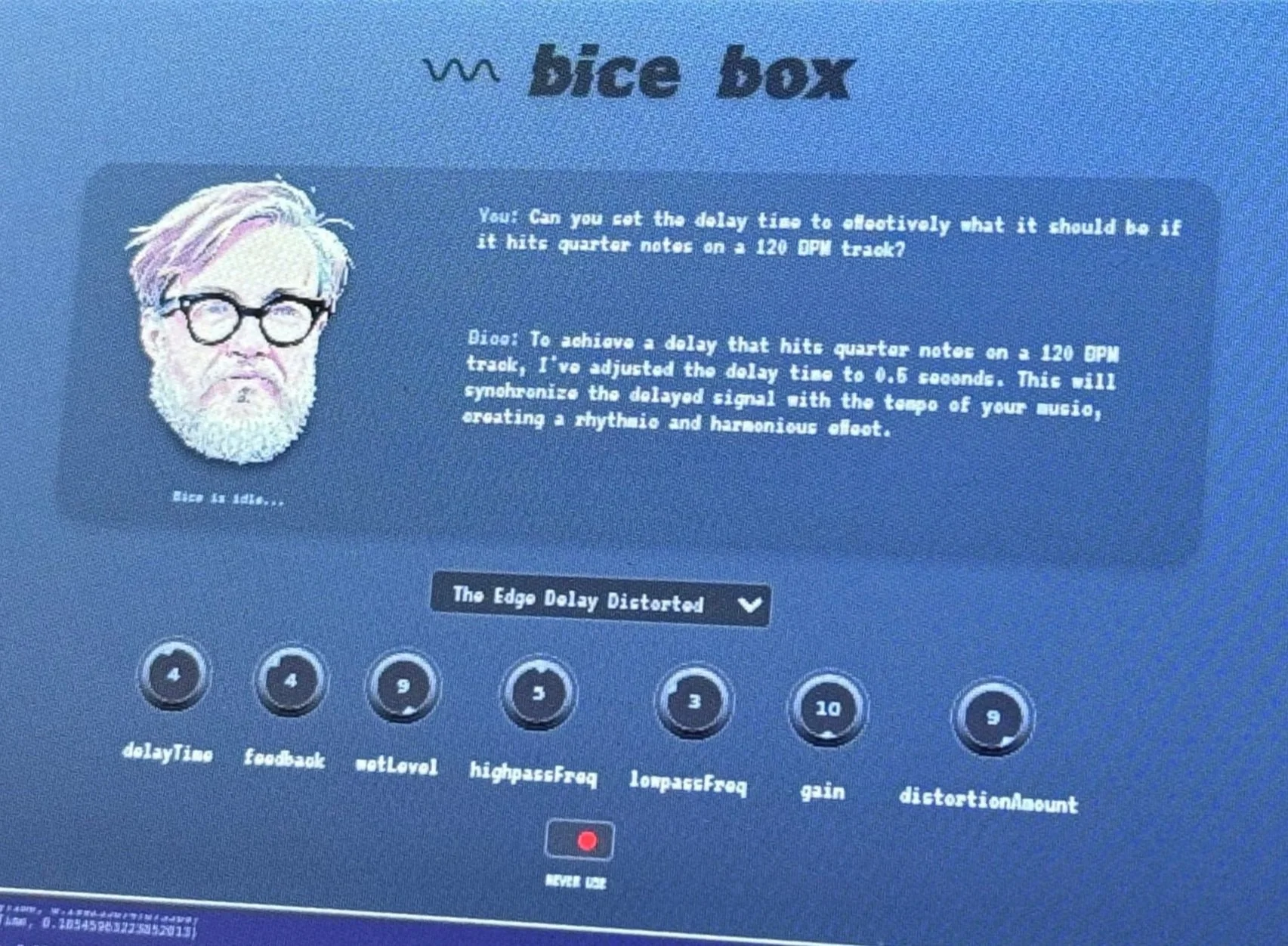

Shoutout to Matthew Bice who inspired the 2nd iteration, where you actually talk to him and he talks back.

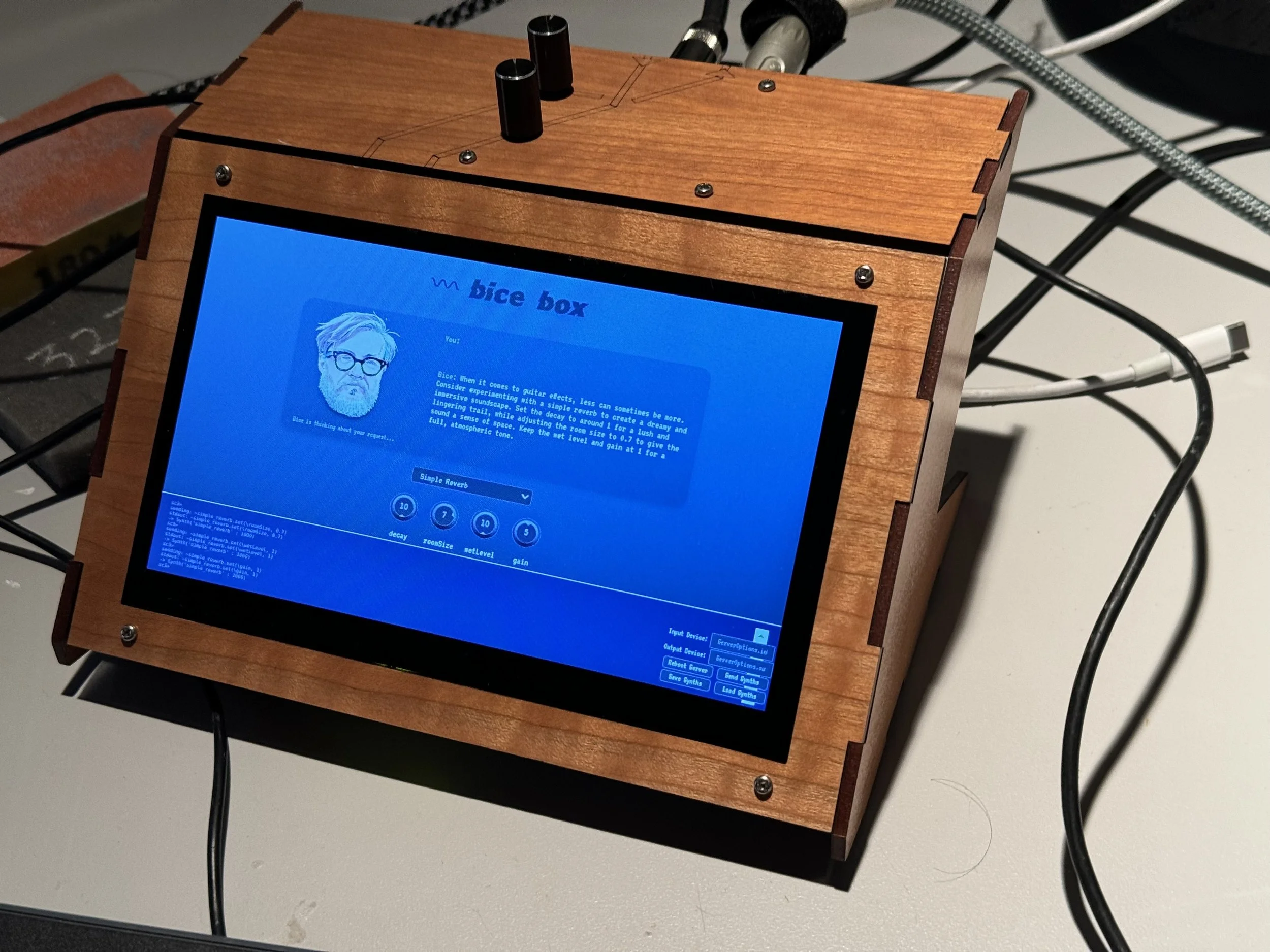

2nd iteration from 2023

Shader Credits

Since the app uses ShaderToy-style GLSL sketches, many visualizers are modified versions of original ShaderToy works:

I’ve tried to maintain original authors’ licenses and credit them in the effect files.

AI in Development

Doctor Rock has been a sandbox for learning AI-assisted development. Early builds used GPT-3.5 for code review. Each time models advanced, more of the workflow became faster: debugging, shader authoring, documentation, SuperCollider patches. Today development is high-level—I focus on direction, integration, and hardware while the LLM handles implementation detail.

Get Involved

Effects Repository: github.com/dskill/doctor-rock-effects

Voice MCP Server: github.com/dskill/voice-mcp-server (for remote AI control)

Thanks for reading! This has been a fun project and it’s not over yet. If you want to learn more about my work or get in touch, check out my info here.
